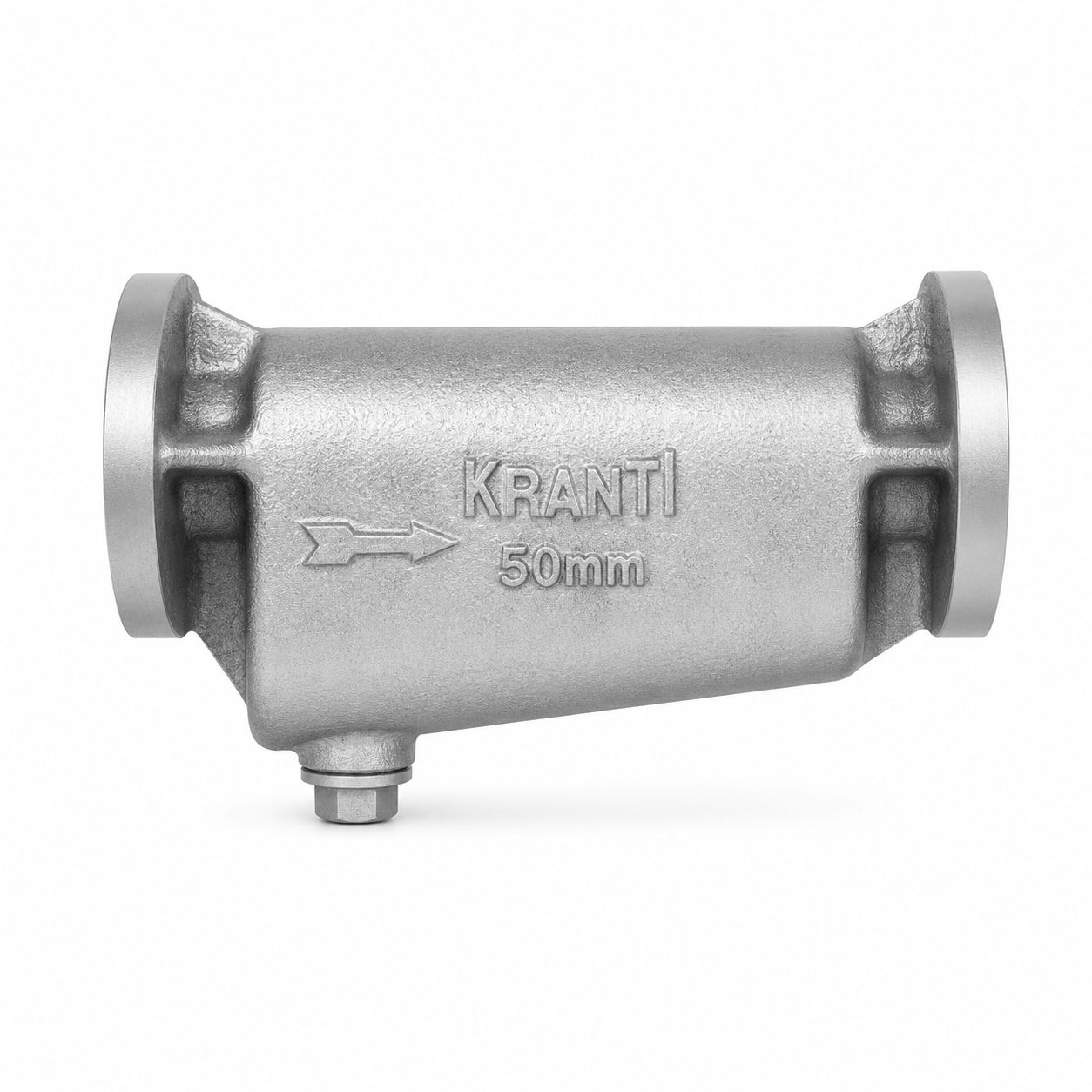

IBR APPROVED Cast Iron Moisture Seperator PV-110 KRANTI
₹3,769.60 – ₹33,324.00
GST @18% Inclusive Price: ₹4,448.13
GST @18% Inclusive Price: ₹8,037.22
GST @18% Inclusive Price: ₹13,993.86
GST @18% Inclusive Price: ₹23,536.75
GST @18% Inclusive Price: ₹24,684.66
GST @18% Inclusive Price: ₹39,322.32
| Quantity | Discount | Discounted price |
| 1 - 2 | - | - |
| 3 - 20 | 5% | - |
The IBR Approved Cast Iron Moisture Separator is a high-performance device designed to efficiently remove moisture and condensate from steam, compressed air, and other gaseous systems. Manufactured from high-quality cast iron, this moisture separator ensures durability, reliability, and long service life in demanding industrial applications. It is specifically engineered to improve the efficiency of steam and air systems by preventing water carryover, which can cause damage to downstream equipment such as turbines, heat exchangers, and process machinery.
This moisture separator is IBR (Indian Boiler Regulations) approved, ensuring compliance with stringent safety and quality standards required for boiler and steam applications. The design incorporates advanced separation technology that effectively traps and eliminates moisture while allowing dry steam or air to pass through. Its robust construction enables it to withstand high-pressure and high-temperature conditions, making it ideal for use in power plants, chemical industries, refineries, and manufacturing units.
With its easy installation and low maintenance requirements, the Cast Iron Moisture Separator is a cost-effective solution for improving steam quality and optimizing energy efficiency. It helps reduce corrosion, enhance heat transfer, and minimize operational downtime, thereby extending the lifespan of the entire steam system. Available in various sizes and configurations, this moisture separator is a crucial component for industries that rely on clean, dry steam or compressed air for their processes.
- Model No.: PV-110
- Product Name: Cast Iron Moisture Seperator
- Type of Pattern: Horizontal Type
- Product Description: Provided Internal Ribs which removes the condensate from steam lines
- Body : Cast Iron as per IBR 86 to 93 Gr. A
- Gasket: Steam Jointing Sheet as per IS 2712 Gr. W/3
- Drain Plug: Carbon Steel as per IS 1367
- Pressure Rating: Class 150
- Hydraulic Test Pressure: Body 300 psi (g)
- Working Pressure: Max. BOP 150 psi (g)
- Working Temperature: Max 220°C
- End Details: Flanged Ends to Bs10 Table F
